UNO Duemilanove 2009 Board for Arduino Controller AVRmega328-20PU

Oky Newstar Technology Co., Ltd
Contact Now

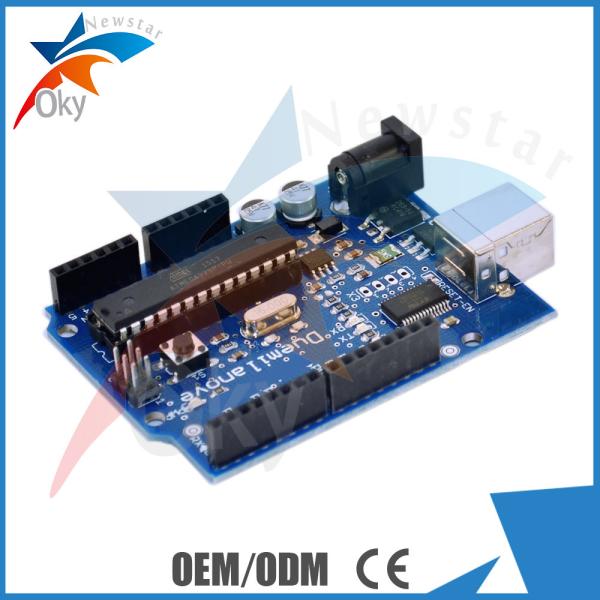

UNO Duemilanove 2009 Board for Arduino Controller AVRmega328-20PU

Brand Name : DIY

Model Number : Duemilanove 2009

Certification : CE FC

Place of Origin : Made in China

MOQ : 5pcs

Price : USD7.85/pc--USD8.9/pc

Payment Terms : L/C, Western Union, MoneyGram and etc.

Delivery Time : 1-3 work days

Packaging Details : special package

Controller : AVRmega328-20PU

Input voltage (recommended) : 7-12v

Digital IO pins : 8

Analog input pins : 6

SRAM : 1 KB

Clock Speed : 16MHz

Operating voltage : 5V

Flash Memory : 32 KB (the other 2k for bootloader)

PWM channel : 6

Contact Now

UNO Duemilanove 2009 Board for Arduino Controller AVRmega328-20PU

Specifications:

Microcontroller

ATmega328p

Operating Voltage

5V

Input Voltage (recommended)

6-11V

Digital I/O Pins

14 (of which 6 provide PWM output)

Analog Input Pins

6

DC Current per I/O Pin

40 mA

DC Current for 3.3V Pin

300 mA

Flash Memory

32 KB of which 2KB used by bootloader

SRAM

2 KB

EEPROM

1 KB

Clock Speed

16 MHz

Description:


1. brand new
2. Good condition
3. Good price

The Duemilanove Board Arduino is a microcontroller board based on the ATmega328. It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz crystal oscillator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.

Test proTest procedure

/*
The circuit:
* LCD RS pin to digital pin 8
* LCD Enable pin to digital pin 9
* LCD D4 pin to digital pin 4
* LCD D5 pin to digital pin 5
* LCD D6 pin to digital pin 6
* LCD D7 pin to digital pin 7
* LCD BL pin to digital pin 10
* KEY pin to analogl pin 0
*/

#include <LiquidCrystal.h>

LiquidCrystal lcd(8, 13, 9, 4, 5, 6, 7);

char msgs[5][16] = {"Right Key OK ",
"Up Key OK ",
"Down Key OK ",
"Left Key OK ",
"Select Key OK" };

int adc_key_val[5] ={50, 200, 400, 600, 800 };
int NUM_KEYS = 5;
int adc_key_in;
int key=-1;
int oldkey=-1;

void setup()
{
lcd.clear();
lcd.begin(16, 2);
lcd.setCursor(0,0);
lcd.print("ADC key testing");
}

void loop()
{
adc_key_in = analogRead(0); // read the value from the sensor
key = get_key(adc_key_in); // convert into key press

if (key != oldkey) // if keypress is detected
{
delay(50); // wait for debounce time
adc_key_in = analogRead(0); // read the value from the sensor
key = get_key(adc_key_in); // convert into key press
if (key != oldkey)
{
lcd.setCursor(0, 1);
oldkey = key;
if (key >=0){
lcd.print(msgs[key]);
}
}
}
delay(100);
}

// Convert ADC value to key number
int get_key(unsigned int input)
{
int k;

for (k = 0; k < NUM_KEYS; k++)
{
if (input < adc_key_val[k])
{
return k;
}
}

if (k >= NUM_KEYS)k = -1; // No valid key pressed
return k;
}
